Description

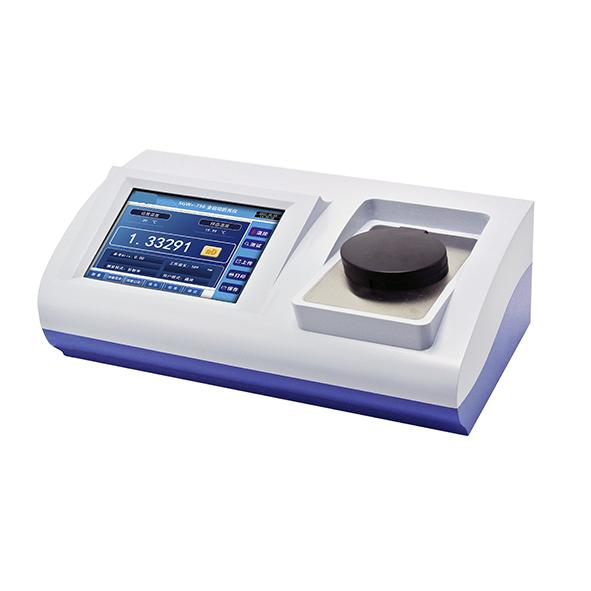

DYW -756 / DYW -753
Characteristics
1=>High resolution CCD detection system.
2=>Fast measuring speed, good repeatability, and wide temperature control range.
3=>Measuring the corrosion resistance, scratch resistance, easy cleaning, and durability of prism.
4=>Minimum sample amount is approximately 0.5ml, and the sample can be recycled.
5=>LED light source that lasts over 100000 hours.
6=>Multiple measuring methods: Fragrance refractive index, Vegetable oil refractive index, F42 fructose corn syrup, F55 fructose corn syrup concentration, Glucose concentration, Sucrose concentration, Solid content (juice vegetables, canned products, soft drinks), Honey water content, nD20 and user-defined formula.
7=>It meets graded management, provides scientific and user-friendly operation.
Specifications
|
Parameters/Model DYW-756 DYW-753 |
||
|
Measuring range |
Refractive index (nD): 1.30000-1.70000 Brix : 0-100% |
|
|
Measuring accuracy |
Refractive index (nD): ±0.0002 Brix : ±0.1% |
|
|
Resolution |
Refractive index (nD): ±0.00001 Brix : ±0.01% |
|
|
Audit Trail |
Optional |
/ |
|
Temp. control mode |
Peltier(Built-in) |
|
|
Temp. display range |
0-100°C |
|
|
Temp. control range |
5-85°C |
|
|
Temp. control accuracy |
±0.02°C |
|
|
Prism |
Artificial sapphire |
|
|
Operating system |
Windows |
/ |
|
Display |
8 inch color touch screen |
|
|
Data storage |
16G |
10000 sets |
|
Interface |
USB，Keyboard，Mouse，Ethernet， Universal Printer，Optional: WLAN |
USB，U Disk |
|
Power supply |
100V~240V, 50/60Hz, 150W |
|
|
Overall dimensions |
570mm×460mm×300mm |
|
|
Weight(gross) |
5kg |
|
