Description

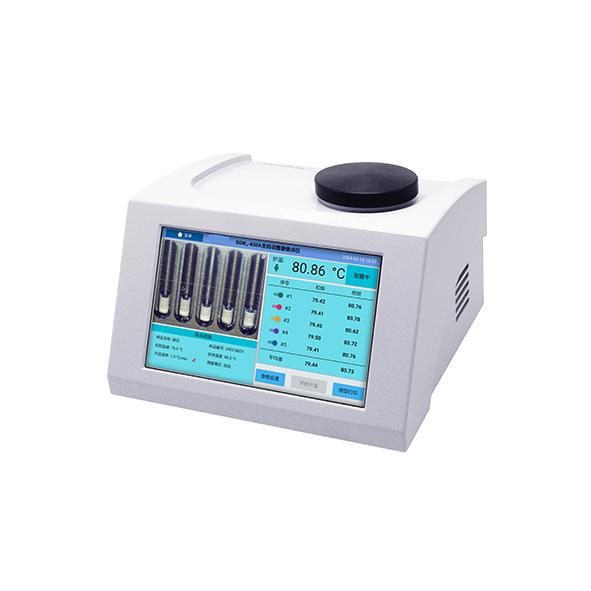

DYW-400 /DYW-360
Characteristics
1=>HD video detection system, observing 2 samples at the same time.
2=>Automatically record measuring process, support video playback and data recalling.
3=>Compliant with ASTM D3461, ASTM D3104, ASTM D3954, ASTM D6090.
4=>Touch screen, user-friendly operation.
5=>Widely used to component control and quality test of tar , asphalt , paraffin , resin , fats , rosin , lubricant , Vaseline , medical ointment , ointment , suppository , edible grease.
Specifications
|
Parameters/Model DYW-400 DYW-360 |
||
|
Measuring range |
Room temperature-400°C |
Room temperature-360°C |
|
Measuring modes |
Auto / Visual |
Auto / Visual |
|
Number of sample |
2 |
2 |
|
Measuring methods |
600 |
400 |
|
Number of Users |
200 |
150 |
|
Audit trail |
Optional |
Optional |
|
Resolution |
0.1°C |
|
|
Linear heating rate |
0.1°C / min~20°C / min |
|
|
System |
Android |
|
|
Data storage |
128G |
64G |
|
Display |
10.1 inch touch screen, 720P HD camera |
|
|
Interface |
1 x RS232，3 x USB ，1 x RJ-45 |
|
|
Power Supply |
100-240V，50 / 60Hz ，150w |
|
|
Package Dimensions |
495mm×493mm×350mm |
|
|
Weight (Gross) |
5 kg |
|
