Description

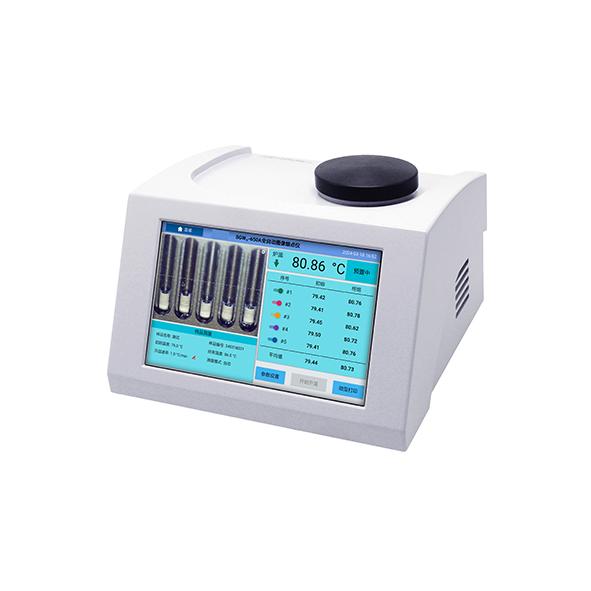

DYS-650A/DYS630A
Characteristics
1=>Image processing and analysis, with video recording and playback.
2=>Android operating system with large touch screen.
3=>Equipped with multi-point calibration function, observing with automatic mode or visual mode.
4=>Improved accuracy and reliability of the melting point.
5=>It can measure special samples that appear dark or opaque after melting, as well as samples that decompose during heating.
6=>Compliant with the relevant requirements of the National Pharmacopoeia, GMP, GLP, and FDA/21CFR Part 11.
Specifications
|
Parameters/Model DYS-650A DYS-630A |
||
|
Measuring range |
Room temperature – 400°C |
|
|
Measuring mode |
Auto / Visual |
|
|
Measuring methods |
600 |
400 |
|
Number of Users |
300 |
200 |
|
Audit trail |
Optional |
Optional |
|
Electronic Signature |
Yes |
Yes |
|
Resolution |
0.01°C |
|
|
Linear heating-up rate |
0.1°C/min~20°C/min |
|
|
Accuracy |
≤200°C ±0.3°C ; >200°C ±0.5°C |
|
|
Repeatability |
0.3°C (heating rate: 1.0°C/min) |
|
|
Linear heating rate error |
±5% |
|
|
Number of capillary |
5 |
3 |
|
Capillary dimensions |
Outer diameter: φ1.4mm Inner diameter: φ1.0mm Length: 90mm |
|
|
Height of sample |
3mm |
|
|
Operation System |
Android |
|
|
Data storage |
128G |
|
|
Display |
10.1 inch touch screen |
|
|
Interface |
1 x RS232，3 x USB，1 x RJ-45，WIFI |
|
|
Power supply |
100V~240VAC，50Hz/60Hz，150W |
|
|
Package Dimension |
495mm×493mm×350 mm |
|
|
Weight(Gross) |
5kg |
|
