Automatic Kjeldahl Protein Analyzer

AgroProduce Quality Analysis

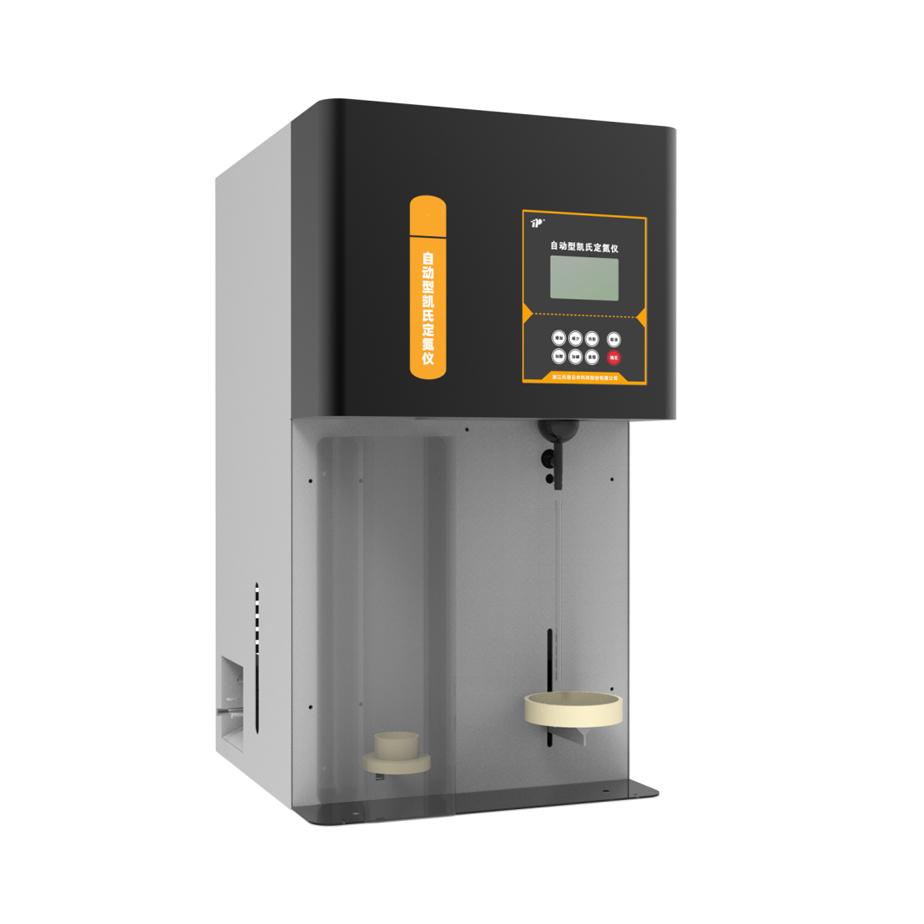

Automatic Kjeldahl Protein Analyzer DAKP-02

Characteristics:

Adopt microcomputer controlling process; include manual mode and automatic mode. Can be set and switched according to user’s need.
2. Large array LCD display, touch key, easy to operate.
3. Automatically control distill, add water, control water level are cut off water supply.
Various security protections: digestive system security device, steam generator water shortage alarm, water level detection fault alarm.
5. Stored operation procedure quantity: 250
6. Instrument shell adopts specially made plastic spray steel. Working area adopts ABS anticorrosive board, Avoid chemical reagent corrosion and mechanical surface damage, acid proof and alkali proof.
Once detected fault, controlling system will power off automatically.

Principle

Measuring principle steps of the auto-meter are shown as follows:

sampling

assimilation

titration

calculation

distillation

Attention: This instrument can test content of nitrogen, and then content of Protein can be

calculated by the content of nitrogen.

Technical parameters

Measure variety: foodstuff, feedstuff, foods, dairy products, drink, soil, water, medicine, precipitate and chemical.
Working mode: Automatic and manual (without titration)3
Storing data: 250 datum
Measure range: 0.1mgN-200mgN (nitrogen content 0.1%-99%)
Recovery rate: ≥99% (relative error, include digestion process)
Repetition rate: relative standard deviation<±1%
Working hours: distillation time: 5-15 minutes, the user can set automatically according to different samples.
Voltage: AC 220V, 50Hz
Cooling water consumption: distillation fraction 3L /min (water temperature is less than 20degrees)
Distillation fraction power supply: 1000
