Description

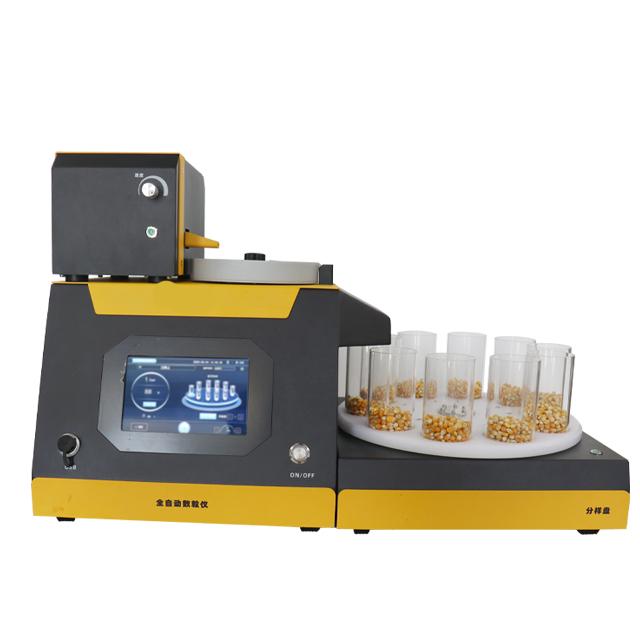

Automatic Sampling Seed Counter DASS-F
Product Descriptions
Suitable for corn, rice, wheat, rape, vegetables and other seeds. It has an automatic sample separation function.
Characteristics
- 7-inch color touch screen to guide the operation process.
- .Record content: time, total number of grains, number of samples, counting mode, sensitivity…..
- Adjustable speed: stepless speed regulation.
- Turntable operation: automatic, jog, manual three can be converted.
- There are two modes can be chose: Automatic stop and free counting.
Free counting: counting without upper limit until no seeds fall and no key operation for 2 minutes, the vibrating disc will stop working protectively.
Automatic stop: preset the set value. When the number of grains reaches the number of grains per cup and the set number of cups, the turntable will automatically stop working. When the equipment leaves the factory, it defaults to 10 cups. When the number of grains is completed, it will automatically stop working, and it can also count grains in batch. - Rotary multi station design: after the current material cup is counted, it will automatically jump to the next material cup, which can continuously drop materials during bagging and placement.
- Sensitivity adjustment function: users can adjust the sensitivity of 6 types of large grain long seeds, large grain round seeds, medium grain long seeds, medium grain round seeds, small grain long seeds and small grain round seeds. Select any type, and the other 5 types of seeds can not be counted. It can count only the particles of the selected order, avoid the interference of impurities and make the number of particles more accurate.
- Add variety name: can add 20 crop variety names, edit and classify the variety names.
- Data export: USB port
Technical parameters
Number of containers: 10 cups Container size: 6.5*11cm
Power source: 220VAC/50~60Hz Counting range: 1~9999 Accuracy: ±2‰
110V/50~60Hz can be customized
Sample size: 1-23mm
Counting speed: maximum speed of 1000 to 2000 particles / minute (depending on particle size) Feeder: Electromagnetic type
The weight and size of machine: 46kg 730*365*470mm
