Description

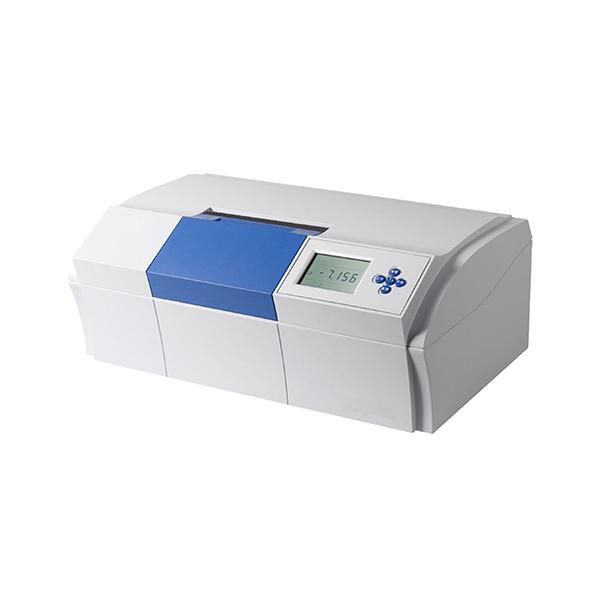

DYZZ-2S/DYZZ-2B
Characteristics
1=>Photoelectric test and microcomputer control.
2=>Measuring optical rotation and sugar degree (DYZZ-2S).
3=>Storage of three times results.
4=>Calculation of average values.
5=>Measurement of dark-colored sample.
Specifications
|
Parameters/Model DYZZ-2S DYZZ-2B |
||
|
Measuring mode |
Optical Rotation, International Sugar Scale |
Optical Rotation |
|
Light Source |
LED + interference filter |
|
|
Wavelength |
589nm |
|
|
Measuring range |
±45°(OR) ±120°Z(ISS) |
±45°(OR) |
|
Resolution |
0.001°(OR) 0.01°Z(ISS) |
0.002°(OR) |
|
Accuracy |
±(0.01+measuring value x 0.05%)°(OR) ±(0.03+measuring value x 0.05%)°Z(ISS) |
±(0.01+measuring value x 0.05%)°(OR) |
|
Repeatability |
≤0.002°(OR) |
≤0.01°(OR) |
|
Min transmission |
1% |
10% |
|
Display |
5 inch LCD |
|
|
Test Tube |
100mm 200mm (regular) |
|
|
Interface |
RS232 |
|
|
Power supply |
220V±22V，50Hz±1 Hz，150w |
|
|
Overall dimensions |
730mm×480mm×470mm |
|
|
Weight (Gross) |
36kg |
|
