Description

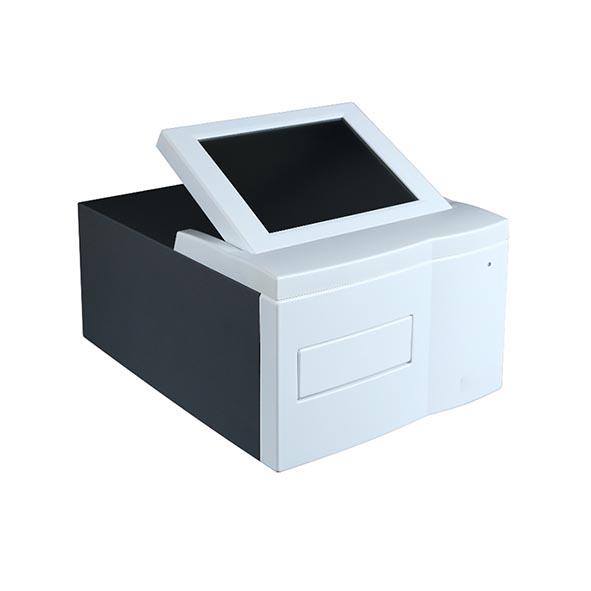

Digital Display Professional Microplate Reader DDPM-1096C
Automatic Elisa Analyzer
1.10.4-inch color LCD display, touch screen operation.
2.The eight-channel optical fiber measurement system, imported detector.
3.Center positioning function, accurate and reliable.
4.Five kinds of linear vibration plate functions.
5.Extra Wide voltage input design、Global voltage application
6.Endpoint method, two-point method, dynamics, single / dual-wavelength test mode.
7.Products can be used independently, or in conjunction with the use of computers, automatic adaptation
8.Configure the inhibition rate measurement module, dedicated to the field of food safety.
Parameters
Lamp：DC12V 22W Tungsten halogen lamp
Optical path:8 channel vertical light path system，automatic center location
Wavelength range：340-1000nm
Filter: Default configuration 405、450、492、630nm, Can be installed up to 15 filters.
Reading range:0-6.000Abs(450nm)
Linear range:0-4.000Abs(450nm)
Resolution:0.001Abs(display、print)、Internal operation:0.0001Abs.
Accuracy:≤±0.01Abs
Stability:≤±0.002Abs
Repeatability:≤0.2%
Vibration plate: Five kinds of linear vibration plate ，function, Adjustable 0-255 seconds
Interface: USB+COM
Display: ARM control system, 10.4-inch color LCD screen, display the entire, rotating screen design, adjustable viewing angle.
Software: Professional software, Can store 500 groups program, 1000000 sample results, More than10 kinds of curve fitting equations.
Power input:AC100-240V 50-60Hz
Weight:12Kg
