Description

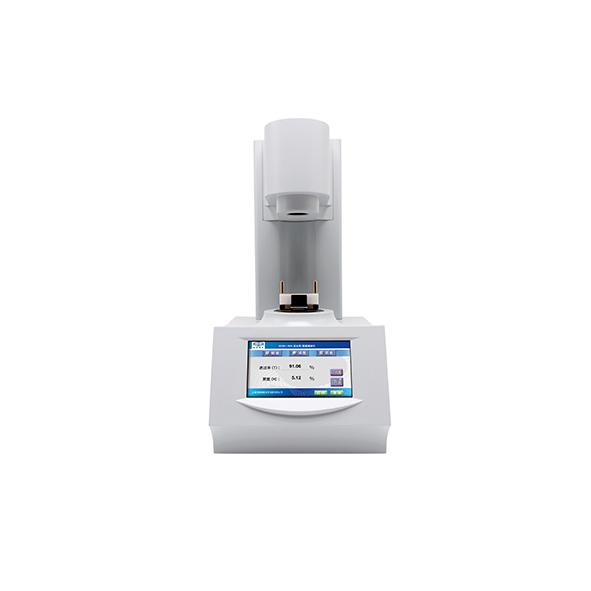

DYW-806
Characteristics
1=>Meet ASTM D1003-61(2007).
2=>Parallel illumination, scattering hemisphere and integrating sphere optical receiving mode.
3=>Use silicon photovoltaic cells as signal receiver.
4=>Computer operating system, automatic data processing system, no- knob operation and very easy to use.

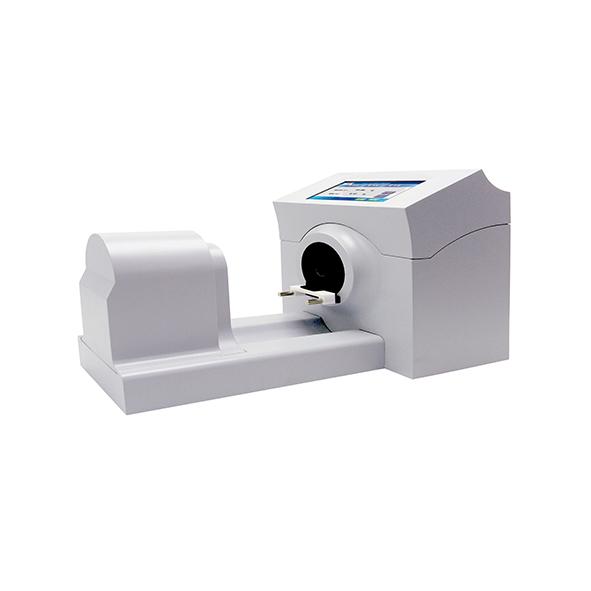

5=>Smart design with horizontal or vertical set-up.
6=>Reliable and precise transmittance and haze data.
7=>The LED light source assures long-term stable results for many years.
Specifications
|
Parameters/Model DYW-806 |
|
|
Illuminant |
A light(2856K)、C light(6774k)、D65 light(6500K) |
|
Light Source |
LED |
|
Measuring range |
Transmittance: 0-100 % Haze: 0-100% |
|
Resolution |
0.01%(transmittance); 0.01%(haze) |
|
Accuracy |
Transmittance: ≤±1 %(Standard neutral density filter); Haze: ≤±5 % |
|
Repeatability |
Transmittance: ≤0.1% Haze: ≤0.1 |
|
Sample window size |
25mm(incident window) 21mm(exit window) |
|
Display |
Large LCD touch screen |
|
Interface |
USB，U disk |
|
Power supply |
220V±22V，50Hz±1Hz，100w |
|
Overall dimensions |
641mm×356mm ×436mm |
|
Weight (Gross) |
10kg |
