Description

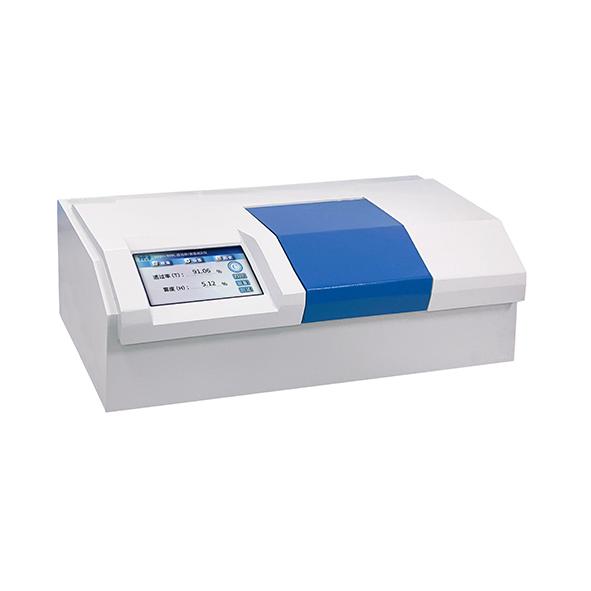

DYW-800 / DYW-800L
Characteristics
1=>Meet GB/T2410-2008, ASTM D1003-2007, JIS K7105-81.
2=>Measurement of optical characteristics of the transparent and translucent planes materials and plastic membranes.
3=>Closed measurement compartment is suitable for small samples, reducing the impact of light.
4=>Standardized operating procedures guides the measurement.
5=>Color touch screen simplifies operation and improves detection speed.
Specifications
|
Parameters/Model DYW-800 DYW-800L |
||
|
Illuminant |
C light(6774k) |
|
|
Light Source |
Tungsten halogen lamp |
LED |
|
Measuring range |
Transmittance: 0-100% Haze: 0-30% |
|
|
Resolution |
Transmittance: 0.01% Haze: 0.01% |
|
|
Accuracy |
Transmittance: ±1.5%(Standard neutral density filter) Haze: ±0.5% |
|
|
Repeatability |
Transmittance: ≤0.5% Haze: ≤0.2 |
|
|
Sample size |
50mm×50mm |
|
|
Display |
5 inch color touch screen |
|
|
Interface |
USB，U disk，RS232 |
|
|
Data storage |
1000 sets |
|
|
Power supply |
220V±22V，50Hz±1Hz，30w |
|
|
Overall dimensions |
530mm×380mm×300mm |
|
|
Weight (Gross) |
9kg |
|
