Description

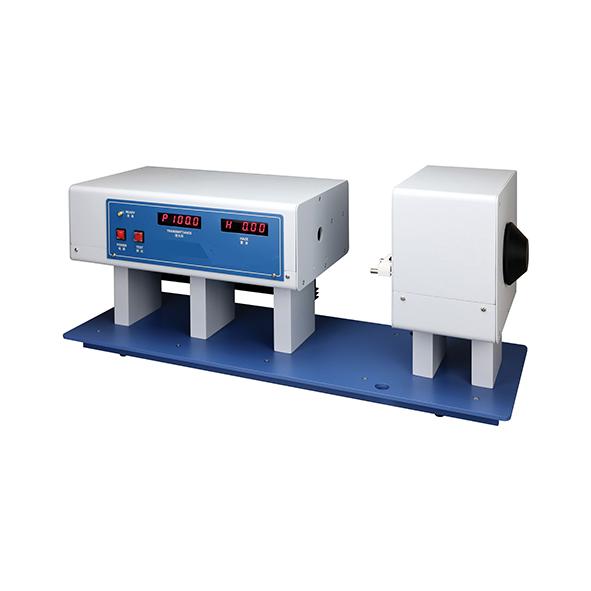

DYT-S
Characteristics
1=>Measurement of transmittance and haze of the parallel plane sample of all transparent and translucent (plastic board or sheet).
2=>Suitable for turbidity of liquid sample measurement (water and beverage).
3=>In conformity with the standard of GB/T 2410-80, ASTM D 1033-61(1977), JISK7105-81.
4=>Microcomputer control and easy to operate.
5=>Display of transmittance and haze at the same time.
Specifications
|
Parameters/Model DYT-S |
|
|
Illuminant |
C light(6774k) |
|
Light Source |
Tungsten halogen lamp |
|
Measuring range |
Transmittance: 0-100 % |
|
Resolution |
0.1%(transmittance); 0.01%(haze) |
|
Accuracy |
Transmittance: ≤±1 %(Standard neutral density filter); ≤±2 %(Standard Haze slice) Haze: ≤±5 % |
|
Repeatability |
Transmittance: ≤0.5% Haze: ≤0.2 |
|
Sample window size |
25mm(incident window) 21mm(exit window) |
|
Display |
Nixie tube |
|
Interface |
USB |
|
Power supply |
220V±22V，50Hz±1Hz，100w |
|
Overall dimensions |
910mm×410mm ×480mm |
|
Weight (Gross) |
23kg |
