Description

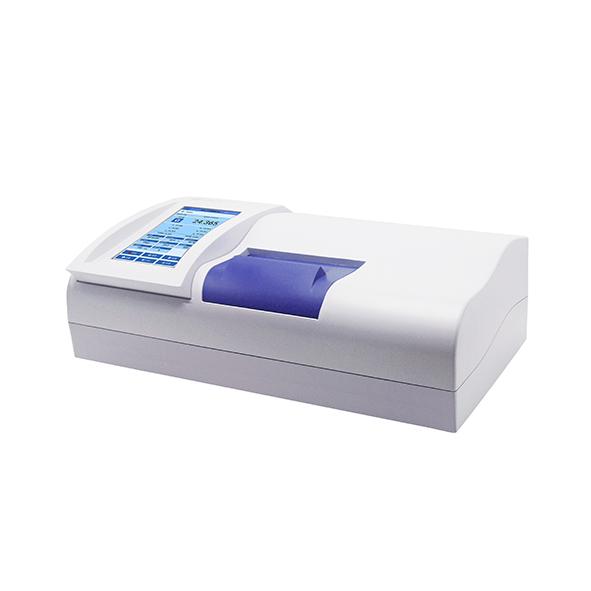

DYS-568A/DYS-537A/DYS-533A
Characteristics
1=>Unique and state-of-art control technology, equipped with high quality prisms.
2=>High response speed, less noise, and minimum transmittance makes measurement more accurate and efficient.
3=>LED light source that lasts over 100000 hours.
4=>Large database, and user hierarchical management. Up to 1000 pre-stored measurement methods.
5=>Fast and stable temperature control minimizes measuring time.
6=>Comply with pharma standards and audit trail function is optional.
7=>Access control (4 grades) and 500 users accounts.
8=>DYS-537A has eight different wavelengths to select. (365 nm to 880 nm, various combinations)
Specifications
|
Parameters/Model DYS-568A DYS-537A DYS-533A |
||||
|
Measuring mode |
Optical Rotation, Specific Rotation, Concentration, International Sugar Scale and User defined |
|||
|
Light source |
LED + precision interference filters |
Tungsten halogen lamp (20W) |
LED + precision interference filters |
LED + precision interference filters |
|
Wavelength |
589nm |
Multiple wavelength |
Dual wavelength |
589nm |
|
Standard:546,589nm Optional:365,405,436, 578,633nm |
Standard:589nm Optional(one):365,405, 436,546,578,633,880nm |
|||
|
Measuring range |
±90°(OR) ±259°Z(ISS) |
|||
|
Resolution |
0.0001° |
0.001° |
0.001° |
|
|
Accuracy |
±0.003° |
±0.004° |
±0.004° |
|
|
Repeatability |
≤0.002° |
|||
|
Min. transmission |
0.01% |
0.1% |
0.05% |
|
|
Response speed |
8°/S |
|||
|
Measuring time |
6 times/26s |
|||
|
Temp. Control range |
Peltier temperature control: 10-50°C |
|||
|
Temp. accuracy |
±0.2°C |
|||
|
Operating system |
Android |
|||
|
Display |
10.1 inch color touch LCD |
|||
|
Calibration method |
Multi-point automatic calibration |
|||
|
Data storage |
128G |
|||
|
GMP Regulations |
Qualified |
|||
|
Audit trail |
Optional |
|||
|
Interface |
RS232，USB，U disk，Keyboard，Mouse，WIFI，Ethernet |
|||
|
Test tubes |
Standard: 200mm(regular), 100mm(regular), 100mm(temp control) Optional: 50mm(regular), 200mm(temp control) |
|||
|
Power supply |
220V±22V，50Hz±1Hz，200w |
|||
|
Overall dimensions |
860mm×510mm×470mm |
|||
|
Weight(Gross) |
36kg |
|||
