Description

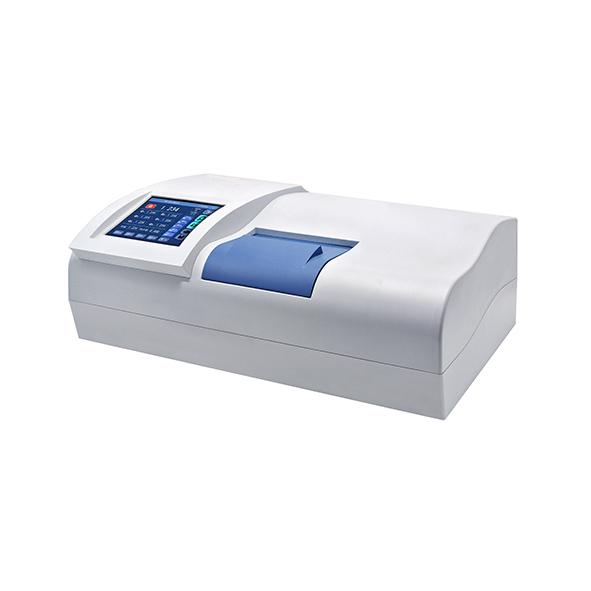

DYS-2 /DYS-1
Characteristics
1=>Need not preheat when turning on.
2=>Automatically retest 6 times and calculate the average and root mean square, can measure dark samples.
3=>Available to measure dark-colored sample.
4=>Peltier principle to control the temperature (DYS-2).
5=>Color touch screen
Specifications
|
Parameters/Model DYS-2 DYS-1 |
||
|
Measuring mode |
Optical Rotation, Specific Rotation, Concentration, International Sugar Scale |
|
|
Light source |
LED + interference filter |
|
|
Wavelength |
589nm |
|
|
Measuring range |
±45°(OR); ±120°Z(ISS) |
|
|
Accuracy |
±0.01° (-15° ≤OR ≤+15°) ±0.02° (OR<-15° or OR>+15°) |
|
|
Resolution |
0.001°(OR) ; 0.01°Z(ISS) |
|
|
Repeatability |
0.002 °(OR) |
|
|
Min. transmission |
1% |
|
|
Temp. control range |
15-30°C |
—– |
|
Temp. accuracy |
±0.5°C |
—– |
|
Display |
7 inch color touch LCD |
|
|
Interface |
RS232，USB |
|
|
Test Tube |
100mm 200mm (regular) 100mm(temp control) |
100mm 200mm (regular) |
|
Power supply |
220V±22V，50Hz±1 Hz，200w |
|
|
Overall dimensions |
820mm×500mm×510mm |
|
|
Weight (Gross) |
43kg |
|
