Description
DYL-602 / DYL-606 / DYL-608 DYL-612 / DYL-616 / DYL-618 DYL-622 / DYL-626 / DYL-628
Characteristics

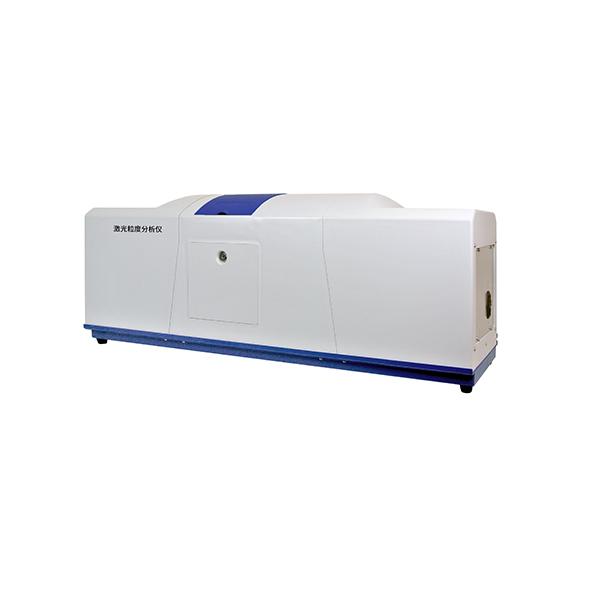

1=>The laser particle size analyzer is based on full measuring range of Mie scattering theory. On the basis of laser illuminate size and the size distribution regular pattern of scattering light energy that comes from the sample inversely calculate out sample group.
2=>Meet ISO-13320, widely used in enterprises and institutions such as chemical, pharmaceutical, cement, new materials, ceramics, soil, as well as universities, research departments, and other fields.
3=>It adopts He-Ne laser make illuminant lasting more than 25000 hours, and the wavelength is 0.6328 micron. Narrow string breadth enhances stability.
4=>It has one primary detector and many assist detectors presenting non-uniform intercourse and three dimension fan-shaped ranges matrix rank. The largest test examination horn angle attainability is up to 135°.
5=>Automatic centering and ultrasonic dispersion system.
Specifications
|
Accuracy Repeti-Parameters/ Dispersion Measuring tiveness Weight Model method range (national standard Dimensions (Net materials D50) |
||||||
|
DYL-602 |
Wet |
0.1-800μm |
±0.5% |
±0.5% |
1000×330×320 mm |
38kg |
|
DYL-606 |
Wet |
0.05-1200μm |
||||
|
DYL-608 |
Wet |
0.02-2000μm |
||||
|
DYL-612 |
Dry |
0.1-800μm |
Main system: 1000×330×320mm Dry sampling system: 350×330×300mm |
40kg |
||
|
DYL-616 |
Dry |
0.1-1200μm |
||||
|
DYL-618 |
Dry |
0.1-2000μm |
||||
|
DYL-622 |
Wet Dry |
0.1-800μm 0.1-800μm |
Main system: 1000×330×320mm Dry sampling system: 350×330×300mm Wet sampling system: 350×330×300mm |
50kg |
||
|
DYL-626 |
Wet Dry |
0.05-1200μm 0.1-1200μm |
||||
|
DYL-628 |
Wet Dry |
0.02-2000μm 0.1-2000μm |
||||
