Description

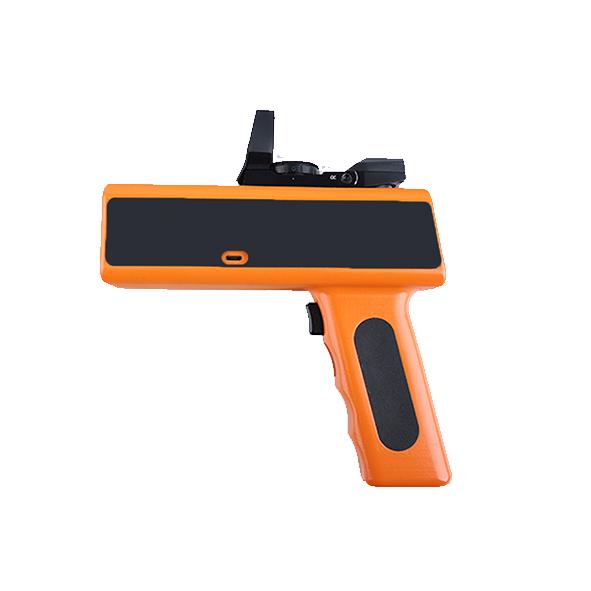

Portable Handheld Smart Digital Goniometer DPHS-130
Features
This instrument is a digital height measuring instrument, suitable for measuring the height of trees in forestry surveys, and can also be used for electric power, iron towers, freight transport, and etc., where distance measurement, angle measurement, and height measurement are required.
1. distance measurement, angle measurement (AD) function.
2. Two-point height measurement (2H) function.
3. Three-point height measurement (3H) function.
4. Use front sight as sight.
5. It is powered by a rechargeable lithium battery, which can be used continuously for about 8 hours when fully charged.
6. If the instrument does not do any operation within the set time (maximum 999S), it will automatically shut down.
7. The high-contrast OLED display screen is adopted, and the display effect is clear.
8. There are two modes of use: hand-held and fixed, and the fixed method needs to be used with a tripod.
Technical parameter
|
Product
|
Hypsometer
|
|
Laser Power
|
5mW
|
|
Distance Range
|
0.1M ~ 20M
|
|
Distance Accuracy
|
±5mm
|
|
Angle Range
|
±60°
|
|
Angle Accuracy
|
0.5°
|
|
Height Range
|
0.5M ~ 35M *
|
|
Height Accuray
|
0.2M
|
|
Working Temperature
|
-20℃ ~ +40℃
|
|
Power supply
|
3.7V/1500mAh rechargeable lithium battery
|
|
Size and Weight of the meter
|
180mm × 170mm × 50mm, 550g
|
|
Storage Temperature
|
-40℃ ~ +60℃
|
