Description

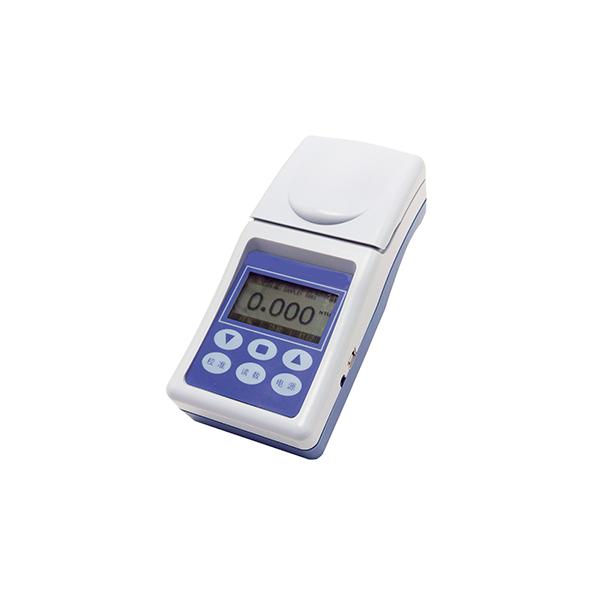

DYZ-2000B / DYZ-1000B / DYZ-500B / DYZ-200B / DYZ-100B / DYZ-50B / DYZ-20B
Characteristics
1=>LCD display, and the backlight can be set.
2=>Novel appearance, convenient for user in field testing.
3=>Using four AA batteries, external power supply, and automatic power-off to save energy.
4=>Infrared light source, can measure the turbidity of colored solutions.
5=>Automatic range switchover, support zero-point and four-point calibration, in line with GLP Regulation and ISO7027 standard
Specifications
|
Parameters/Model DYZ-2000B DYZ-1000B DYZ-500B DYZ-200B DYZ-100B DYZ-50B DYZ-20B |
|||||||
|
Light source |
LED |
||||||
|
Wavelength |
860nm |
||||||
|
Measuring Mode |
NTU, FTU, EBC, ASBC |
||||||
|
Measuring range NTU |
0.000-20.00 20.01-200.0 200.1-2000 |
0.000-20.00 20.01-200.0 200. 1-1000 |
0.000-20.00 20.01-200.0 200.1-500.0 |
0.000-20.00 20.01-200.0 |
0.000-20.00 20.01-100.0 |
0.000-20.00 20.01-50.0 |
0.000-20.00 |
|
Minimum reading |
0.001 |
||||||
|
Allowable error of indication |
≤±6% |
||||||
|
Zero Drift |
≤±0.5%FS |
||||||
|
Stability of indication |
≤±0.5%FS |
||||||
|
Repeatability |
≤0.5% |
||||||
|
Sample bottle |
Φ 25 mm×65 mm |
||||||
|
Sample volume |
20–30 ml |
||||||
|
Calibration points |
7 |
6 |
5 |
4 |
4 |
3 |
2 |
|
Display |
LCD |
||||||
|
Interface |
USB |
||||||
|
Data storage |
2000 sets |
||||||
|
Power supply |
4 x AA batteries; 5V USB power |
||||||
|
Overall dimensions |
325mm×225mm ×170mm |
||||||
|
Weight (Gross) |
3kg |
||||||
