Description

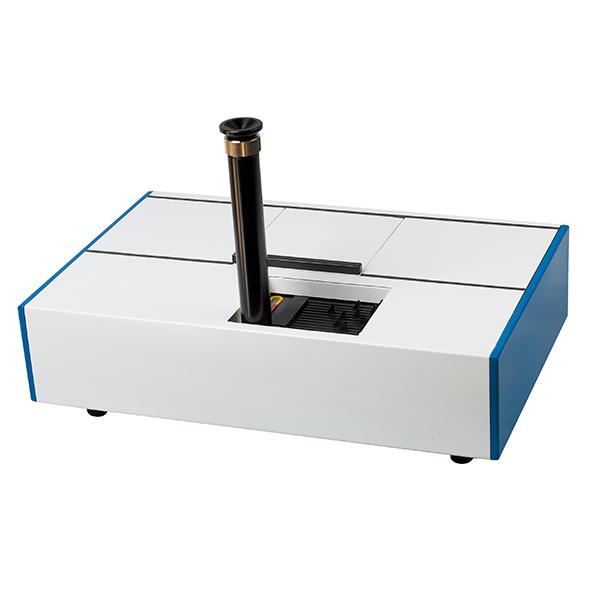

DYL-2
Characteristics
1=> Visual measurement of color matching to determine material color.
2=> Design in conformity with internationally accepted color scale of Lovibond.
3=>Simple structure and easy to operate.
Specifications
|
Measuring range (Lovibond) |
Red R0.1-R79.9 Yellow Y0.1-Y79.9 Blue B0.1-B49.9 Neutral N0.1- N3.9 |
|
Resolution |
0.1 Lovidond |
|
White board diffuse reflectance |
>80% |
|
Magnification |
1.9X |
|
Dimension of Cuvette |
10mm×20mm×40mm 25.4mm×20mm×40mm 133.4mm×20mm×40mm |
|
Power supply |
220V±22V，50Hz±1Hz，50W |
|
Overall dimensions |
620mm×440mm×300mm |
|
Weight(Gross) |
11kg |
