Description

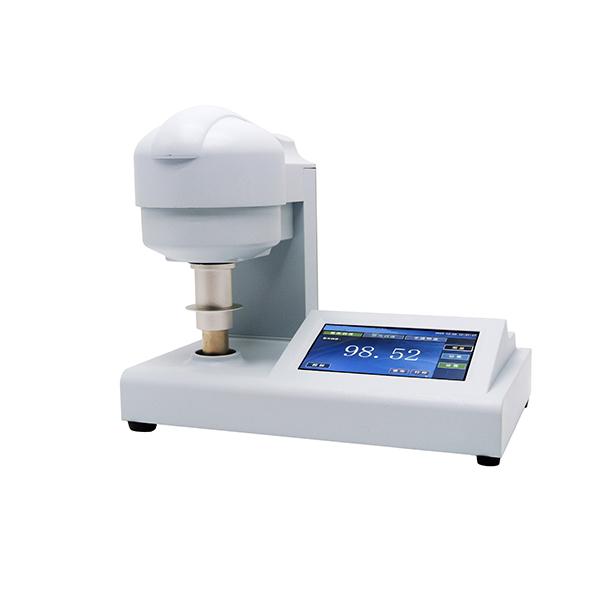

DYB-3 / DYB-2
Characteristics
1=>New structural design with built-in blue and fluorescent light sources.
2=>Measurement of whiteness of blue light of substances such as paper, building materials, starch, flour, sugar and salt.
3=>Color touch screen, stable measurement.
4=>Manual zero adjustment and calibration suitable for small and medium sized enterprises.
Specifications
|
Parameters/Model DYB-3 DYB-2 |
||
|
Measuring mode |
R457 blue light whiteness Fluorescence whiteness Opacity |
|
|
Illuminant |
d/0 |
45/0 |
|
Wavelength |
Peak 457nm, FWHM 45nm |
|
|
Receiver |
Silicon photovoltaic cells |
|
|
Measuring window |
20mm |
30mm |
|
Measuring range |
0-150 |
|
|
Resolution |
0.01 |
|
|
Accuracy |
≤1 |
|
|
Repeatability |
≤0.2 |
|
|
Stability |
≤0.1 |
|
|
Display |
7 inch color touch screen |
|
|
Interface |
USB，U disk |
|
|
Data storage |
200 sets |
|
|
Power supply |
100-240V，50/60Hz，40W |
|
|
Overall dimensions |
475mm×345mm×430mm |
|
|
Weight (Gross) |
8kg |
|
